Interoperability between Java and SharePoint 2013 on Premises


Hi there!

We have moved our blog to the following address:


http://blog.ctp.com/category/microsoft-competence/


In case you have any comment, please leave it using the new URL. Soon we will stop monitoring the blog entries in this site. Also our new material will be posted only in the new URL.

Thanks!




Introduction
One of the main possibilities that provider hosted apps in SharePoint 2013 disclose is the possibility of seamless integration between SharePoint and external systems implemented in non-Microsoft technologies.
In this post are explored the basics of the integration between SharePoint on premises and a Java web application. The RESTfull web service API of SharePoint leverages the communication with the Java web application. The SharePoint chrome control allows the Java web application to have the same styling of the hosted web site.
The TokenHelper.cs source file provides the token service authentication for provided hosted .Net applications. At the moment, it wasn’t found a Java implementation equivalent to the TokenHelper.cs for SharePoint on premises. Thus, it will be used NTLM authentication for the web service calls from the Java web application to SharePoint. This topic shall be revisited.
Find below an extract of the critical parts of the solution source code.

The Communication Layer with SharePoint
The Java web application reads and writes to a list of cars in the hosted web. The hosted web is called Interop1 and the list with data is called Cars. The list Cars has the columns: Brand, Model and Price.
The Java web application will be called Cars App.
The following are the dependencies of the Cars App in its Java implementation:
json-lib 2.4                                    helper classes to manipulate Json objects
resteasy-jaxrs 2.2.1.GA                 RESTEasy was used to access the RESTfull SharePoint API
commons-httpclient 3.1                  dependency of RESTEasy
httpclient 4.1.1                               dependency of RESTEasy
spring-web 2.5.6
spring-core 2.5.6
spring-webmvc 2.5.6
commons-logging 1.1.1

The payload class where the data about a car is stored could be as follows (file Car.java):
public class Car {
       private String brand;
       private String name;
       private long price;
       public String getBrand() {
              return brand;
       }
       public void setBrand(String brand) {
              this.brand = brand;
       }
       public String getName() {
              return name;
       }
       public void setName(String name) {
              this.name = name;
       }
       public long getPrice() {
              return price;
       }
       public void setPrice(long price) {
              this.price = price;
       }
}

It has been defined the Car service in order to read and write into the Cars list. It has the declaration (file CarService.java):
public interface CarService {
    public List<Car> getCars() throws CarException, HttpException, IOException ;
    public long insertCar(Car car) throws CarException;
}

The Cars service implementation has the member variables (file CarServiceImpl.java). These member variables define the authentication parameters, the URIs for the web service endpoints in SharePoint and the field names of the Cars list.
    String user = "YOUR-USER";
    String pass = "YOUR-PASSWORD";
    String urlList =
"http://SHAREPOINT-SERVER/sites/Interop1/_api/web/lists/getbytitle('Cars')/items";
    String urlDigest = "http://SHAREPOINT-SERVER/sites/Interop1/_api/contextinfo";
    // These tags are the ones that SharePoint uses to identify the columns in the
    // list. They can be retrieved by making a HTTP Get to the server and
    // checking the returning field names.
    String brandTag = "x3aj";
    String modelTag = "Title";
    String priceTag = "Price";

The Cars service implements the following helper methods.
The helper method callRestEasyService reads data by performing a HTTP GET against the RESTfull API of SharePoint. The URI provided in the req parameter defines exactly what is being retrieved; it follows the OData protocol syntax. In our case it would be the items of the list Cars.
The result is returned in JSON format, as stated in “application/json; odata=verbose”. Also, it would be possible to return the result as XML by setting the format as “application/atom+xml”.

    public String callRestEasyService(String req, String user, String pass) {
        String output = "nothing";
        try {

            // For Kerberos authentication:
     // Credentials credentials =
     //    new UsernamePasswordCredentials(user, pass);

            NTCredentials credentials =
                new NTCredentials(user, pass, "JAVA-MACHINE-NAME", "DOMAIN");
            HttpClient httpClient = new HttpClient();
            httpClient.getState().setCredentials(AuthScope.ANY, credentials);
            httpClient.getParams().setAuthenticationPreemptive(true);

            ClientExecutor clientExecutor =
                new ApacheHttpClientExecutor(httpClient);
            java.net.URI uri = new java.net.URI(req);
            ClientRequestFactory fac =
                new ClientRequestFactory(clientExecutor, uri);

            ClientRequest request = fac.createRequest(req);

            request.accept("application/json;odata=verbose");
            ClientResponse<String> response = request.get(String.class);

            if (response.getStatus() != 200) {
                throw new RuntimeException("Failed : HTTP error code : " +
                    response.getStatus());
            }

            BufferedReader br = new BufferedReader(new InputStreamReader(
                    new ByteArrayInputStream(response.getEntity().getBytes())));

            System.out.println("Output from Server .... \n");
            while ((output = br.readLine()) != null) {
                return output;
            }

        } catch (ClientProtocolException e) {

            e.printStackTrace();
            return e.getMessage();

        } catch (IOException e) {

            e.printStackTrace();
            return e.getMessage();

        } catch (Exception e) {

            e.printStackTrace();
            return e.getMessage();

        }
        return null;
    }

In order to create objects in SharePoint through the RESTfull API (i.e., items in the Cars list), it’s needed to provide in the call a Form Digest.  The Form Digest can be obtained through a POST to the hosted web endpoint “/_api/contextinfo”. The helper addRestEasyRetrieveDigest performs this POST and reads the Form Digest. The exact URI is defined in the variable urlDigest, already declared above.
Note the methods callRestEasyService and addRestEasyRetrieveDigest are practically the same, just the first does GET and the second POST.

    public String callRestEasyRetrieveDigest (String req, String user, String pass) {
        String output = "nothing";
        try {

            NTCredentials credentials =
                new NTCredentials(user, pass, "JAVA-MACHINE-NAME", "DOMAIN");
            HttpClient httpClient = new HttpClient();
            httpClient.getState().setCredentials(AuthScope.ANY, credentials);
            httpClient.getParams().setAuthenticationPreemptive(true);

            ClientExecutor clientExecutor =
                new ApacheHttpClientExecutor(httpClient);
            java.net.URI uri = new java.net.URI(req);
            ClientRequestFactory fac =
                new ClientRequestFactory(clientExecutor, uri);

            ClientRequest request = fac.createRequest(req);

            request.accept("application/json;odata=verbose");
            ClientResponse<String> response = request.post(String.class);

            if (response.getStatus() != 200) {
                throw new RuntimeException("Failed : HTTP error code : " +
                    response.getStatus());
            }

            BufferedReader br = new BufferedReader(new InputStreamReader(
                    new ByteArrayInputStream(response.getEntity().getBytes())));

            System.out.println("Output from Server .... \n");
            while ((output = br.readLine()) != null) {
                return output;
            }

        } catch (ClientProtocolException e) {

            e.printStackTrace();
            return e.getMessage();

        } catch (IOException e) {

            e.printStackTrace();
            return e.getMessage();

        } catch (Exception e) {

            e.printStackTrace();
            return e.getMessage();

        }
        return null;
    }

The helper addRestEasyPost allows the creation of objects in SharePoint through POSTs as stated in the OData protocol. This method is used to add cars to the list Cars.
The parameter req has the URI where to create the object. Here, it would be the URI of the Cars list.
Another detail regarding objects creation, it’s the need to state its type. In the Cars list, the list items are of type SP.Data.CarsListItem. The type naming convention is as follows:
SP.Data.<ListName>ListItem
In case of doubts, it’s possible to confirm the object type by performing a HTTP GET for the list items and checking their type.
public String addRestEasyPost(String req, String user, String pass, String digestValue, Car car) {
        String output = "nothing";
        try {

            // For Kerberos authentication:
            // Credentials credentials =
            //     new UsernamePasswordCredentials(user, pass);
            NTCredentials credentials =
                new NTCredentials(user, pass, "JAVA-MACHINE-NAME", "DOMAIN");
            HttpClient httpClient = new HttpClient();
            httpClient.getState().setCredentials(AuthScope.ANY, credentials);
            httpClient.getParams().setAuthenticationPreemptive(true);

            ClientExecutor clientExecutor =
                new ApacheHttpClientExecutor(httpClient);
            java.net.URI uri = new java.net.URI(req);
            ClientRequestFactory fac =
                new ClientRequestFactory(clientExecutor, uri);

            ClientRequest request = fac.createRequest(req);
            request.accept("application/json;odata=verbose");
            request.header("content-type", "application/json;odata=verbose");
            request.header("X-RequestDigest", digestValue);

            JSONObject innerObject = new JSONObject();
            innerObject.put("type", "SP.Data.CarsListItem");
            JSONObject body = new JSONObject();
            body.put("__metadata", innerObject);
            body.put(brandTag, car.getBrand());
            body.put(modelTag, car.getName());
            body.put(priceTag, car.getPrice());
            request.body("application/json", body.toString());
            // This attribute was not needed (despite the documentation):
            // request.header("content-length",
            //     request.getBody().toString().length());

            ClientResponse<String> response = request.post(String.class);

            if (response.getStatus() != 201) {
                throw new RuntimeException("Failed : HTTP error code : " +
                    response.getStatus());
            }

            BufferedReader br = new BufferedReader(new InputStreamReader(
                new ByteArrayInputStream(response.getEntity().getBytes())));

            System.out.println("Output from Server .... \n");
            while ((output = br.readLine()) != null) {
                return output;
            }

        } catch (ClientProtocolException e) {

            e.printStackTrace();
            return e.getMessage();

        } catch (IOException e) {

            e.printStackTrace();
            return e.getMessage();

        } catch (Exception e) {

            e.printStackTrace();
            return e.getMessage();

        }
        return null;

    }

The helper method parseJsonDigestValue parses the JSON response from the endpoint “/_api/contextinfo” retrieving the form digest.
    public static String parseJsonDigestValue(String json) {
        JSONObject jsonObject = (JSONObject) JSONSerializer.toJSON(json);
        jsonObject = (JSONObject) jsonObject.get("d");
        jsonObject = (JSONObject) jsonObject.get("GetContextWebInformation");
        return jsonObject.getString("FormDigestValue");

    }

The following helper, parseJson, translates the JSON response to the Car payload class, returning a list of cars.
    public List<Car> parseJson(String json) {
        List<Car> spCars = new ArrayList<Car>();
        JSONObject jsonObject = (JSONObject) JSONSerializer.toJSON(json);
        jsonObject = (JSONObject) jsonObject.get("d");
        JSONArray array = (JSONArray) jsonObject.get("results");
        Car car;
        for (int i = 0; i < array.size(); i++) {
            car = new Car();
            jsonObject = (JSONObject) array.get(i);
            car.setBrand(jsonObject.getString(brandTag));
            car.setName(jsonObject.getString(modelTag));
            car.setPrice(jsonObject.getLong(priceTag));
            spCars.add(car);
        }
        return spCars;
    }

To read items, the Cars service defines the method getCars. The implementation is as follows:
    public List<Car> getCars() throws CarException, HttpException, IOException {

        String jsonString = callRestEasyService(urlList, user, pass);
        return parseJson(jsonString);
    }

To write items, the Cars service defines the method insertCar. The implementation uses the helper method as follows:
    public long insertCar(Car car) throws CarException {
        cars.add(car);
        String digestValue =
          parseJsonDigestValue(callRestEasyRetrieveDigest(urlDigest, user, pass));
        addRestEasyPost(urlList, user, pass, digestValue, car);
        return 0;
    }

User Experience (UX) for Apps in SharePoint 2013
The App user experience can be designed on top of the three possibilities within SharePoint:
  1.  Full page user experience
  2. App Part user experience
  3. Custom Actions
The full page UX means the App will have the whole browser page for its user interface. In the full page UX, the App can make use of the SharePoint chrome control to render the same styling as of the hosted web and, optionally, render a header like SharePoint pages do.
In the App Part UX the App surfaces its UI on a page in the hosted web. A special kind of web part known as App Part takes care of embedding the App's page into the hosted page. The App Part accomplished this by rendering an iFrame where the source is the App's page. The App page can have the same styling of the hosted web by importing the hosted site's CSS files through JavaScript.
Custom Actions allow the placement of links to App’s pages in the Ribbon or in the Edi Control Block of the hosted web. This option has not been explored in this post.

Implementing the User Interface

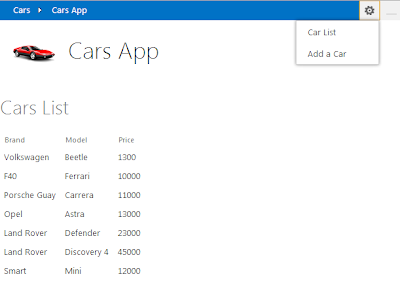

The code below implements the App page named Car.jsp; it displays the list of cars. The page can be rendered as in the full page UX or in the App Part UX. The URL parameter inAppPart defines which way the page will be rendered (inAppPart=true, then as in the App Part UX; if none or false, then as in the full page UX).
First add a few declarations to the JSP page (file Car.jsp):
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
       pageEncoding="ISO-8859-1"%>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@ taglib prefix="spring" uri="http://www.springframework.org/tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title><spring:message code="welcome.title" /></title>

The code in the following boxes should be added to the HEAD element of the page.
Add the references to the libraries in the JSP page (file Car.jsp):
<script src="http://ajax.aspnetcdn.com/ajax/4.0/1/MicrosoftAjax.js"
       type="text/javascript">

</script>
<script type="text/javascript"
       src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.7.2.min.js">

</script>

Initialise the JavaScript block and a few variables from the URL query string:
<script type="text/javascript">
       "use strict";

       // define a namespace for the JavaScript objects: Interop
       window.Interop = window.Interop || {};

       $(document).ready(function() {
              // initialisations
              Interop.CarsApp.init();
              Interop.Styling.init();
       });

       Interop.CarsApp = {
              // load URL parameters
              inAppPart: "false",
              hostUrl: '',

              init: function() {
                     // if the App page is in an App Part,
                    // the developer could set a URL parameter to inform that.
                    // Here: inAppPart=true
                     this.inAppPart =
                        Interop.CarsApp.getQueryStringParameter("inAppPart");
                     // the hosted web URL
                     this.hostUrl = decodeURIComponent(
                        Interop.CarsApp.getQueryStringParameter("SPHostUrl"));
              },

              // Function to retrieve a query string value.
              // For production purposes you may want to use
              // a library to handle the query string.
              getQueryStringParameter: function (paramToRetrieve) {
                     var params = document.URL.split("?")[1].split("&");
                     var strParams = "";
                     for ( var i = 0; i < params.length; i = i + 1) {
                           var singleParam = params[i].split("=");
                           if (singleParam[0].toLowerCase() ==
                               paramToRetrieve.toLowerCase())
                                  return singleParam[1];
                     }
                     return "";
              }
       };

The following script loads the CSS or the chrome control from SharePoint into the page:
Interop.Styling = {
       // Load the SharePoint styling
       init: function () {
              var inAppPart = Interop.CarsApp.inAppPart,
                 hostUrl = Interop.CarsApp.hostUrl, scriptURI, linkMarkup;

    // if the App page will be displayed as in full page or
           // in an App Part, distinct styling initialisations are done
           if(inAppPart === "true") {
        // When loading the App page in an App Part
               // (i.e., embedded in the hosted page)

                // hide a few elements which are just meant for the
                // full page user experience
                $('.displayJustInFullPage').hide();

                // load the hosted web styling
               if (hostUrl !== "") {
                    linkMarkup = "<link rel='stylesheet' href='" + hostUrl +
                       "/_layouts/15/defaultcss.ashx' />";
                } else {
                    // if no host web URL is available, load the default styling
                     linkMarkup = "<link rel='stylesheet' " +
                        "href='/_layouts/15/1033/styles/themable/corev15.css' />";
                }
                $('head').append(linkMarkup);

    } else {
               // When loading the App page as in full page user experience

               // Load the js file SP.UI.Controls.js,
               // afterwards set the Chrome Control and styling
               scriptURI = hostUrl + "/_layouts/15/SP.UI.Controls.js";
               $.getScript(scriptURI, Interop.Styling.setChromeControl);
           }
       },

       setChromeControl: function () {
           // Set the Chrome control and styling
           // (used when the App is displayed in the full page user experience)

           var hostUrl = Interop.CarsApp.hostUrl,
                options = {},
                nav;

         options.siteTitle ="Cars";
         options.siteUrl = hostUrl;
         options.appHelpPageUrl = "cars.html?" + document.URL.split("?")[1];
         options.appIconUrl = hostUrl + "/Shared Documents/car.png";
         options.appTitle = "Cars App";
         options.settingsLinks = [
             {
                 "linkUrl" : "car.html?" + document.URL.split("?")[1],
                 "displayName" : "Car List"
             },
             {
                 "linkUrl" : "carForm.html?" + document.URL.split("?")[1],
                 "displayName" : "Add a Car"
             }
         ];

         nav = new SP.UI.Controls.Navigation("chromeControlContainer", options);

         nav.setVisible(true);
      }
};

</script>
</head>

The following piece of HTML defines the BODY of the page. The elements which should be seen just in the full page user experience are marked with the CSS class displayJustInFullPage. This allows the JavaScript part to hide or display them as seen above.
<body>
       <div id='content'>

              <div class='displayJustInFullPage'>

                     <!-- Chrome control placeholder -->
                     <div id="chromeControlContainer"></div>

                     <h1>Cars List</h1>
              </div>

              <table>
                     <tr class="ms-viewheadertr ms-vhltr">
                           <th class="ms-vh2">Brand</th>
                           <th class="ms-vh2">Model</th>
                           <th class="ms-vh2">Price</th>
                     </tr>
                     <c:forEach items="${cars}" var="car">
                           <tr>
                                  <td class="ms-vb2">${car.brand}</td>
                                  <td class="ms-vb2">${car.name}</td>
                                  <td class="ms-vb2">${car.price}</td>
                           <tr>
                     </c:forEach>
              </table>
       </div>
</body>
</html>

The declarations above should be applied on every page that should look like the hosted web.

The Provider Hosted App
A SharePoint provider hosted app should be created following the instructions:
Once created, edit the AppManifest.xml, setting the URL to a page in your Java web application. That could be the entry page of your application for the full page user experience:
  <Properties>
    <Title>YOUR-APP-TITLE</Title>
    <StartPage>http://JAVA-WEB-APPLICATION-URL/car.html?{StandardTokens}</StartPage>
  </Properties>

The App Part
For the App Part user experience, first add an App Part (known as well as Client Web Part) to your SharePoint project. After that, in the Elements.xml of the App Part, set the URL to the Java web application:
    <Content Type="html" Src="http://JAVA-WEB-APPLICATION-URL/car.html?{StandardTokens}&amp;inAppPart=true" />

It is important to set there "inAppPart=true" to ensure the App Part user experience.
For instructions about how to create an App Part with Visual Studio 2012, refer to:

Conclusion
Provider hosted apps unleash great possibilities of integration between SharePoint and systems developed in other platforms as Java. Here, we have seen how to perform basic read/write operations on SharePoint lists. Also, it was shown how to integrate the App at user interface level with the full page and App Part user experiences.
The SharePoint list Cars; data is read and written into it by the Java web application.

In the full page user experience, the Java web application displaying the cars with the same styling as SharePoint.

From the menu item “Add a Car” it is possible to reach the page from where new cars can be added.

 The form to add new cars into the SharePoint list.

Could you tell which list in from the Java web application and which is from SharePoint?
On the left, the App Part displaying the Java web application and on the right the SharePoint list.

A point of improvement is that App Parts do not resize automatically to fit the Apps content. If the content grows beyond the App Part area in the hosted page, scroll bars are rendered. However, the App page can control the resizing of the App Part avoiding the scroll bars. This is explained in this post:

Further References


Authors: Leandro Bernsmüller and Angel Torralba

13 comments:

Wayne Dyck said...

Is the full project source to this application available?

ppc experts said...

A great online marketing company for technical support inbound calls & pop up calls for tech support , PPC Expert For Tech Support by osiel web.
Call at: +91 981-142-0083 ppc management experts?

sohail sheikh said...

Great post, and great website. Thanks for the information!
web hosting reviews

Karen Maxwell said...
This comment has been removed by the author.
Srini said...

hey can you send me the full source code

sandhosh said...

informative and much interesting blog which engaged me more.Spend a worthful time.Good work author.keep updating more.
SEO Company in India
SEO Services in India
SEO Companies in India
SEO Company India
SEO Services India
SEO Companies India

Crystal Coleman said...

While marketing can be tricky, it is the content that makes the site important. If you provide informative content that serves the needs of your visitors, word will spread.
mazda wreckers brisbane
brisbane wreckers
car wreckers brisbane
wreckers brisbane
auto recyclers brisbane
brisbane holden wreckers
mazda wreckers sunshine coast
4x4 wreckers brisbane
scrap cars brisbane

Kelly Byrnes said...

Hello admin! This is the remarkable article as well as it is valuable for the entire person and I want to say that I would like to write on this subject too. You have an interesting written on this topic.
caboolture car pick up for cash
caboolture cash for car
caboolture scrap car
cash for car caboolture
cash for cars caboolture
cash for unwanted cars
cash for unwanted car brisbane
brisbane unwanted cars for cash
unwanted cars for cash caboolture
get paid for junk cars brisbane

Janice Berry said...

Hello admin! This is the remarkable article as well as it is valuable for the entire person and I want to say that I would like to write on this subject too. You have an interesting written on this topic.
car recycling brisbane
Scrap cars Brisbane
cheap spare parts for cars
Cheap Car Parts Brisbane
car wreckers brisbane
cash for cars brisbane
Mazda wreckers brisbane
cash for car brisbane
cash for car
Cash for Cars

Soniya David said...

Some really useful content here. I've been looking for something like this to help with a research piece I've been working on.
cash for scrap cars brisbane
best wreckers brisbane
car wrecker Brisbane
brisbane wreckers
Mazda wreckers brisbane
wreckers north brisbane
wreckers brisbane northside
car wreckers north brisbane
north brisbane wreckers

Jenny Hatcher said...

Looking To Sell Your Car For Cash or removal Service Is Free and We Remove Truck Van 4wds SUVs. Scrap Or Old Running Or Non Runners Call Us. 0429 794 488
used car buyer brisbane

bella lauren said...

This is the remarkable article as well as it is valuable for the entire person and I want to say that I would like to write on this subject too. You have an interesting written on this topic.
Unwanted Cars Redcliffe

bella lauren said...

Great article which helps consumers and cars owners on how to get rid of their old vehicles and provided enough knowledge about Scrap Car removal brisbane

Post a Comment
